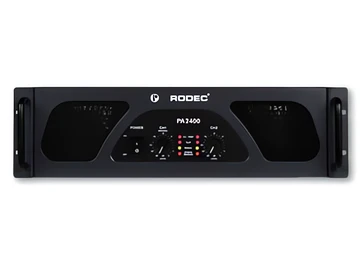

Rodec PA2400

STANDARD FEATURES

• Frontplate (19 inch) in dark grey satin finish.
• Torodial transformer.
• Forced tunnel cooling with fans.
• Input volume control per channel.
• Four LED indicators per channel:
• Power on (Bridged mode)
• Signal Present
• Clip
• Protection circuit active (DC / High temperature)
• Stereo / Parallel / Bridged mono switch at the back panel.
• Balanced inputs via XLR connectors and screw-terminals for fixed installations or mounting in flightcases. Input voltage: 1.1V.
• Speaker output connections via Speakon - and five way binding post connectors.
• Ground lift switch on the back panel to avoid ground loops.
• Build in High temperature -, Clip -, DC - and Short circuit protection circuits.
• Build in limiter circuit to protect speakers with defeat at the backpanel.
• Two strong handles on the front panel.
• Power mains-filter to reduce disturbances on the net. On/off in-rush current limiting.
• Very robust construction.

SPECIFICATIONS

• Stereo 8Ω : 2 x 830W
• Stereo 4Ω : 2 x 1275W
• Stereo 2Ω : 2 x 1550W
• Bridged 8Ω : 2 x 2420W
• Bridged 4Ω : 2 x 2910W
• Weight net : 32kg
• Dimensions (wxhxd) mm : 482 (19'') x 133 (3HE) x 450
